Electric Guitar Kit- Quilt Top



$194.00
List Price $289.99
You Save $95.99
Availability: Backordered

Electric Guitar Kit- Quilt Top
SKU: BYO-Quilt Top

This item is currently out of stock and will be available again in November. Pre-orders are being taken at this time.

Please see our Custom Shop Evolution for an American made option

Building your own electric guitar was never easier! Here is your chance to express yourself by creating a one-of-a-kind masterpiece. The BYO-Quilt Top will easily accommodate any of today's music styles, being limited only by your imagination!

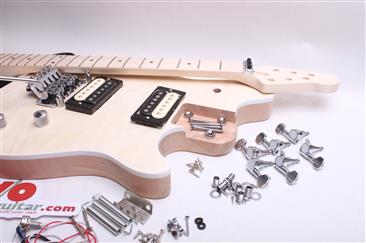

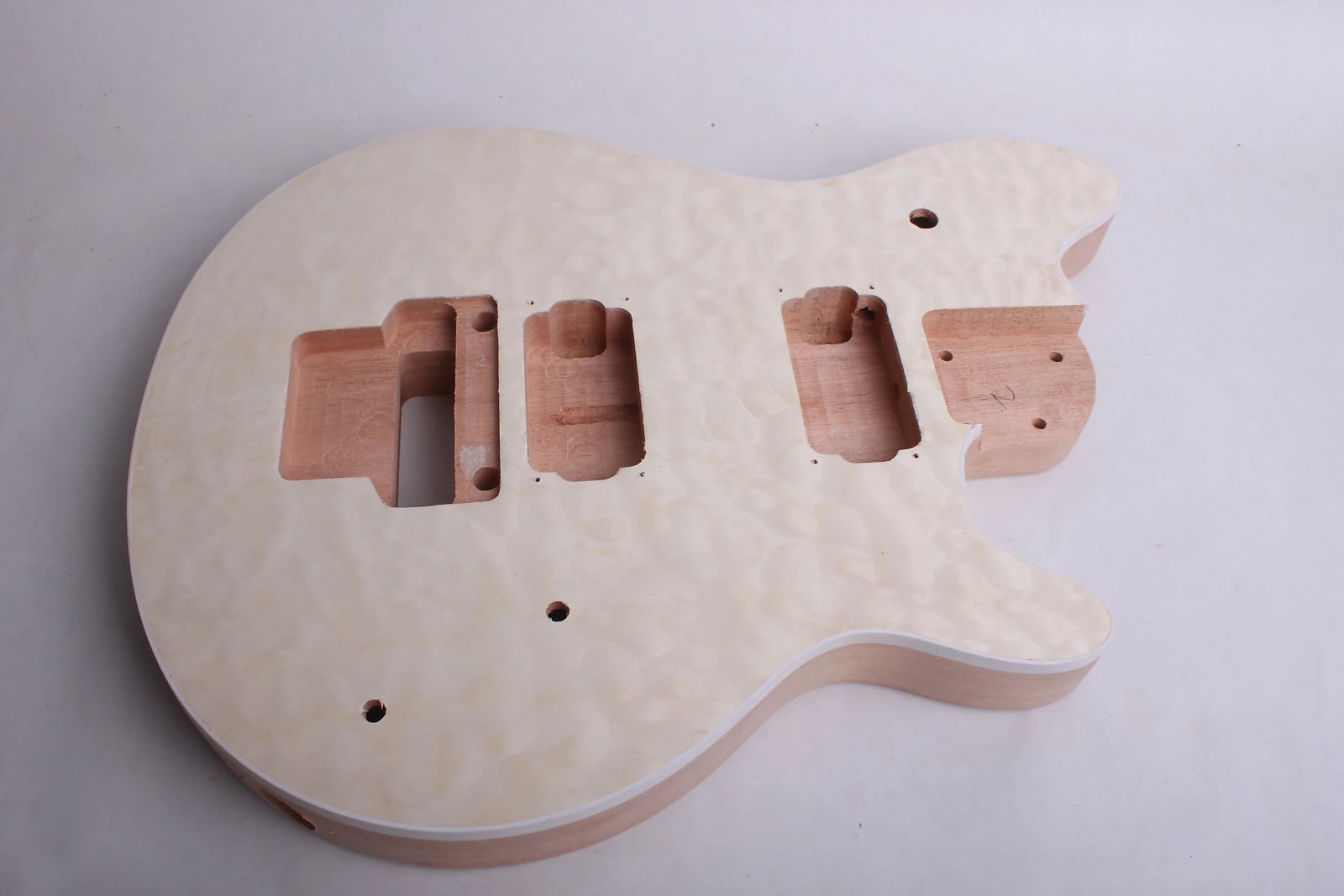

Kit includes all parts to build a complete, playable guitar (see additional images).  The body is a flat top design made of mahogany with a beautiful quilted maple veneer top. The top edge of the body is finished off with white binding. Solid select 22 fret Maple neck with a fretted Maple fingerboard. This kit features a Floyd Rose style trem and locking nut!

All routing is complete.

If you select a Paint Grade Body - the body in your kit may have some blemishes or knots or mismatched woods.

  • Flat Top
  • White binding on the top edge of the body
  • 22 Frets
  • Chrome hardware
  • Mahogany body and Maple neck
  • Bolt on Neck
  • 1 5/8" at nut
  • .84 @ 1st fret
  • .95 @ 12th fret
  • Jumbo Frets (.103 x .045)
  • Floyd Rose Style Trem and locking nut
  • Adjustable truss rod
  • Complete with strings and electric cord

Click on the Tech Specs for additional details.



  • Backordered
  • Complete instructions PDF Version Available
  • Wood Type:Mahogany
  • Neck Pocket TypeBolt On
  • Scale Length:25-1/2
  • Pickups:Two Zebra humbuckers.
  • Finish:
    • Quilted Maple veneer top.
    • Frets:22 Jumbo
    • Inlays:Dots
    • Fretboard Radius:12"
    • Fingerboard:Maple
    • Side Markers:Dots
    • Truss Rod:Adjusting nut at the peghead
    • Tuner Holes:Modern 13/32" (10.32mm)
