Electric Guitar Kit - JEM Style

List Price $299.00
You Save $70.00
Availability: In Stock

Electric Guitar Kit - JEM Style

2 piece center joined Mahogany body!

The BYO-JEM kit is feature packed and great for the first time builder. The white pearloid pre wired pickguard and bolt on neck construction simplifies assembly.

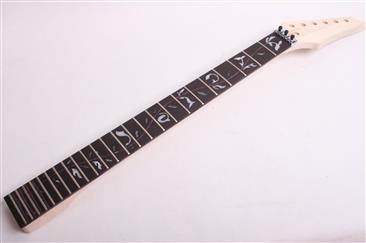

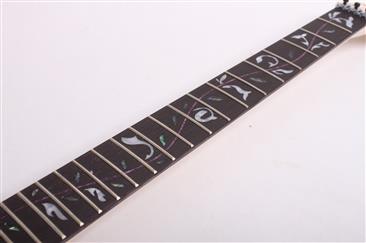

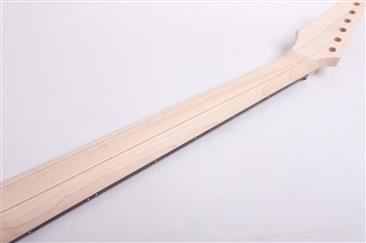

The kit features a 24 fret Maple neck and rosewood fingerboard. The fingerboard has a beautiful mother of pearl and abalone vine inlay and a locking nut.

The solid Mahogany body gives you a light weight guitar without compromising tone and sustain. The body features include classic styling, a Floyd Rose style tremolo and a "Monkey Grip". Available with Chrome, Black or Gold hardware.

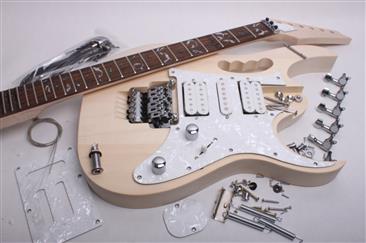

Kit includes all parts to build a complete, playable guitar (see additional images)

  • Double locking Floyd Rose style tremolo
  • 24 Frets
  • .825" @ 1st fret
  • .866" @ 12th fret
  • 1.68" nut width
  • Chrome hardware, standard
  • Pre-wired white pearloid pickguard with white pickups
  • Mahogany body and Maple neck
  • Bolt on Neck
  • Rosewood fingerboard with MOP and Abalone vine inlays
  • Adjustable truss rod
  • Complete with strings and electric cord
  • Available in right handed only

Click on the Tech Specs for additional details.

*** SV Pickup upgrade notes:

This set of pickups was designed by BYOGuitar to match the specs used by SV.  This HSH pickup set favors the sharp, sensitive sound.

Neck Pickup:
13k DC resistance
Ceramic Magnets
4 conductor wiring
F spacing

Middle Pickup:
Single coil
12.5K DC resistance
A5 magnet
F spacing

Bridge Pickup
13.8k DC resistance
Ceramic Magnets
4 conductor wiring
F spacing

  • In Stock
  • Complete instructions PDF Version Available
  • Wood Type:Mahogany
  • Neck Pocket TypeBolt On
  • Scale Length:25-1/2
  • Pickups:HSH
  • Finish:None
  • Frets:24 Medium Jumbo
  • Inlays:Vines
  • Fretboard Radius:12"
  • Fingerboard:Rosewood
  • Side Markers:Dots

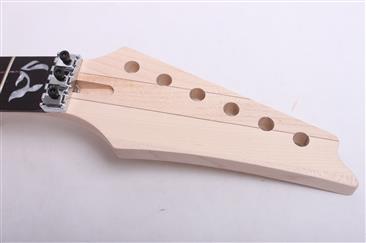

  • Truss Rod:Adjusting nut at the peghead
  • Tuner Holes:Modern 13/32" (10.32mm)
