WD Pre-Drilled Paddle Headstock 22 Fret Neck For Fender Telecaster

List Price $188.20
You Save $53.20
Availability: In Stock

WD Pre-Drilled Paddle Headstock 22 Fret Neck For Fender Telecaster

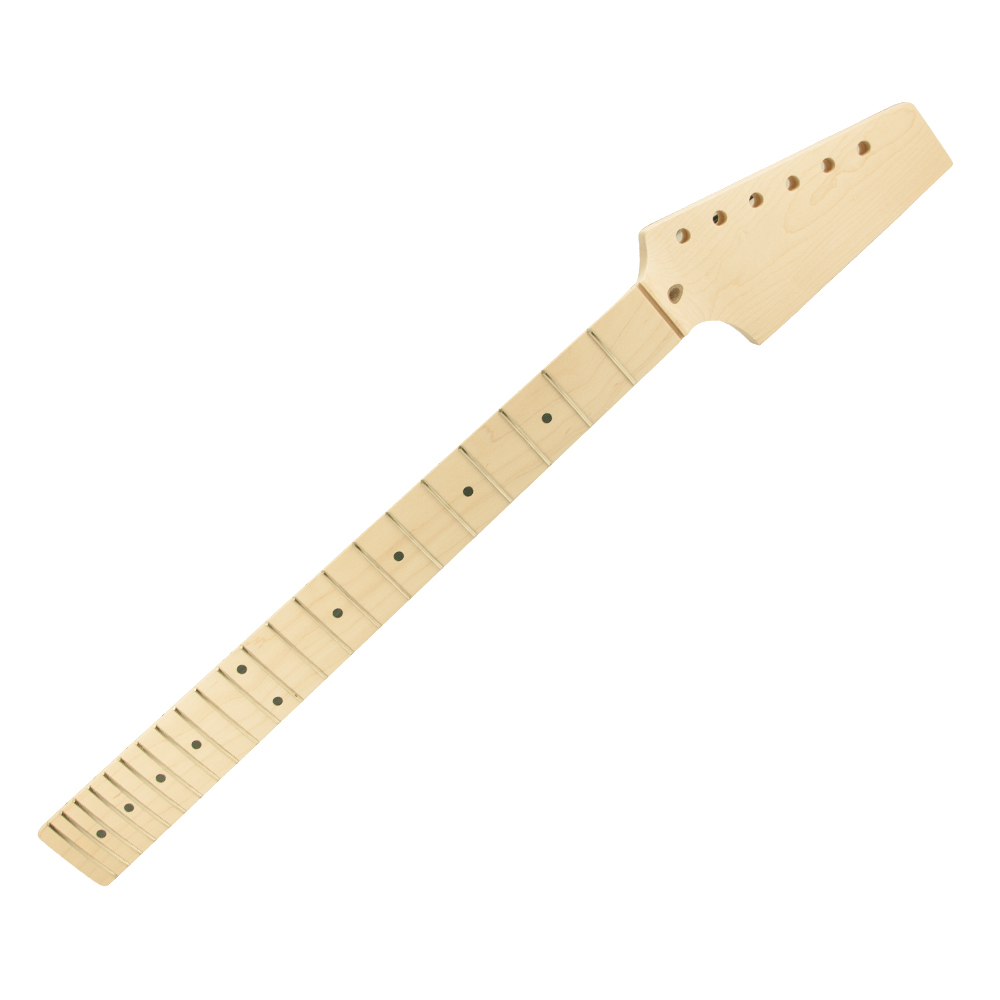

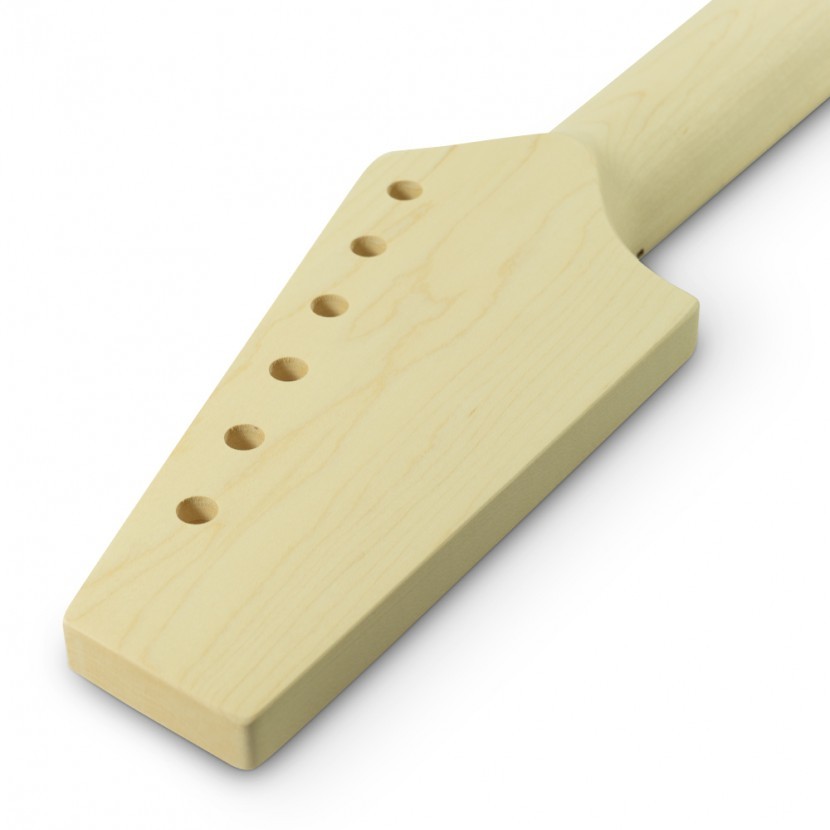

These blank headstock necks have been redesigned to have the angled side cut with the 6 tuning machine holes pre-drilled to make shaping your own headstock as simple as possible saving you, the builder valuable time in production. This neck shares heel specs common to USA Fender® Telecaster® specs and will function as a drop in replacement that you can shape yourself or build your own instrument with a custom headstock! Available with maple, rosewood or ebony fretboards.

All necks require a final level, crown, and polish and may need to be fine-tuned to your instrument and playing preferences. Your new neck should be carefully inspected prior to installation and/or modification as necks are rendered non-returnable once altered. Due to the organic nature of wood each neck is considered unique and may have minor variations in grain or finish from those pictured. WD does not sell what is commonly referred to as seconds or blems. Due to the volume of necks that we sell WD does not hand-select necks based on appearance or weight. WD neck heels are made to Fender USA dimensions and tolerance, this may not account for neck pocket shrinkage or expansion over time. Some neck pocket modification may be required.


  • Fingerboard Radius = 12 in.
  • Nut Width = 1 11/16 in.
  • Profile Shape = Modern C
  • Fret type and count = 6150 Medium - 22 frets
  • Tuner peghole size = 21/64 in. (8.8mm)
  • Binding = none
  • Neck Finish = unfinished
  • Truss Rod location = headstock
  • Skunk Stripe = none
  • Neck and Fretboard Type = maple on maple

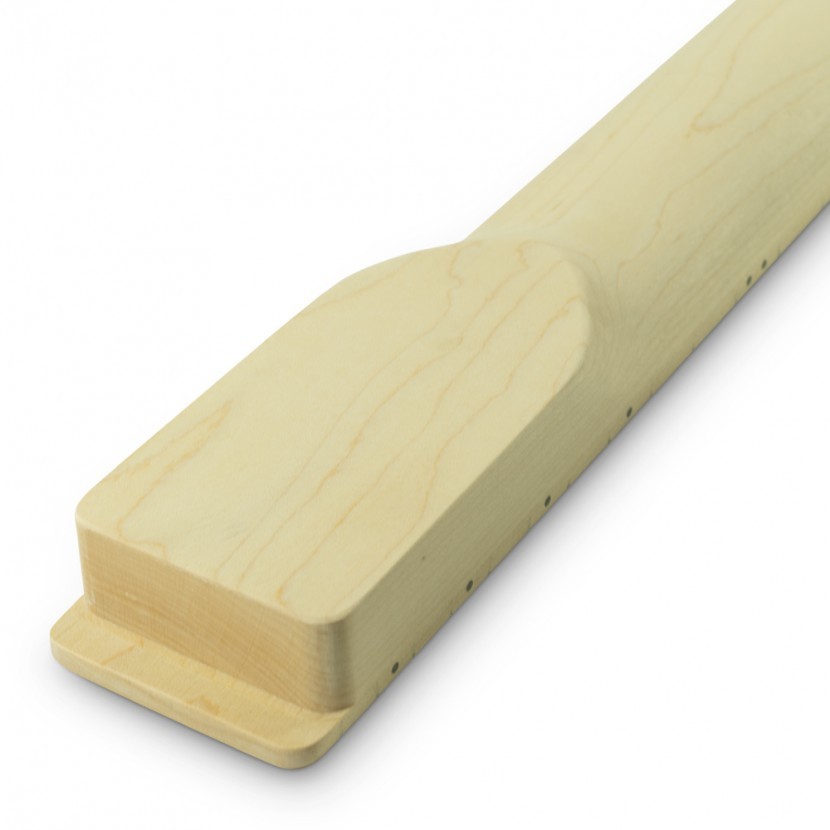

  • Heel Type = Standard Telecaster
  • Orientation = right hand
  • 1st Fret Thickness = 0.86 in.
  • 12th Fret Thickness = 0.91 in.


  • In Stock
  • Wood Type:Hard Rock Maple
  • Fingerboard:Maple
  • Scale Length:25-1/2
  • Fretboard Radius:12"
  • Frets:22 Medium
  • Inlays:Dots
  • Side Markers:Dots
  • Tuner Holes:Vintage 11/32" (8.73mm)
  • Truss Rod:Adjusting nut at the peghead
  • Nut:Not Installed
  • Neck Style:Bolt On
  • Width at Nut:1-11/16"
  • Thickness at first fret.86"
  • Thickness at twelth fret.91"
