Vintage Pre-Wired Pickguard Black
Email To A Friend
|
Print Page
Vintage Pre-Wired Pickguard Black
Choose Pickups
BYOGuitar Storm
BYOGuitar Heat Wave
Tonerider Pure Vintage +$35.00
Tonerider City Limits +$35.00
Tonerider Classic Blues +$35.00
Tonerider Alnico II Blues +$51.00
SD California 50's +$94.00
SD Everything Axe +$164.00
SD Hot Rails for Strat +$174.00
Pickguard & Trem Plate
White 3 Layer
Black 3 layer +$10.00
Brushed Gold +$50.00
Parchment 3-ply +$50.00
White Pearl +$55.00
Black Pearl +$55.00
Green Pearl +$55.00
Blue Pearl +$55.00
Purple Mirror +$55.00
Snakeskin +$55.00
Black/Silver Pailsey +$55.00
Black Abalone +$65.00
Red Tortoise +$65.00
Mint Green 3 ply +$43.50
Seymour Duncan Yngwie LOADED Pickguard - White +$359.00
Seymour Duncan Yngwie LOADED Pickguard - Black +$359.00
SD JIMI HENDRIX™ SIGNATURE LOADED Pickguard - Voodoo Style - White +$389.00
SD DAVE MURRAY LOADED Pickguard - White +$379.00
SD DAVE MURRAY LOADED Pickguard - Black +$379.00
SD DAVE MURRAY LOADED Pickguard - Pearloid +$379.00
Pickup Cover Color
Black
White
$138.99
List Price
$199.00
You Save
$60.01
Qty
Availability: In Stock
Add To Wishlist
Description
Tech Specs
Additional Product Accessories
Vintage Pre-Wired Pickguard Black
SKU: BYO-VINT-PWPGA

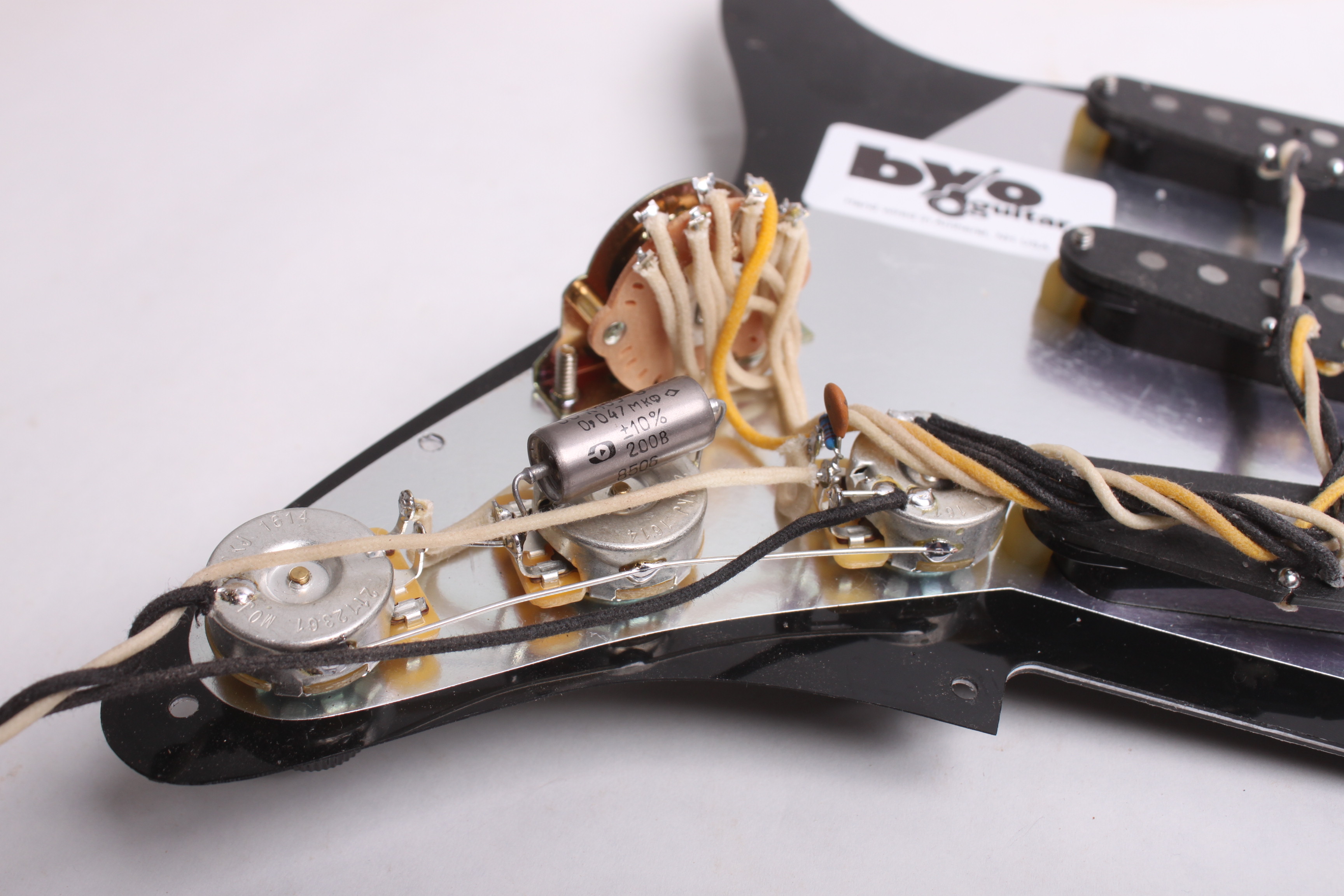

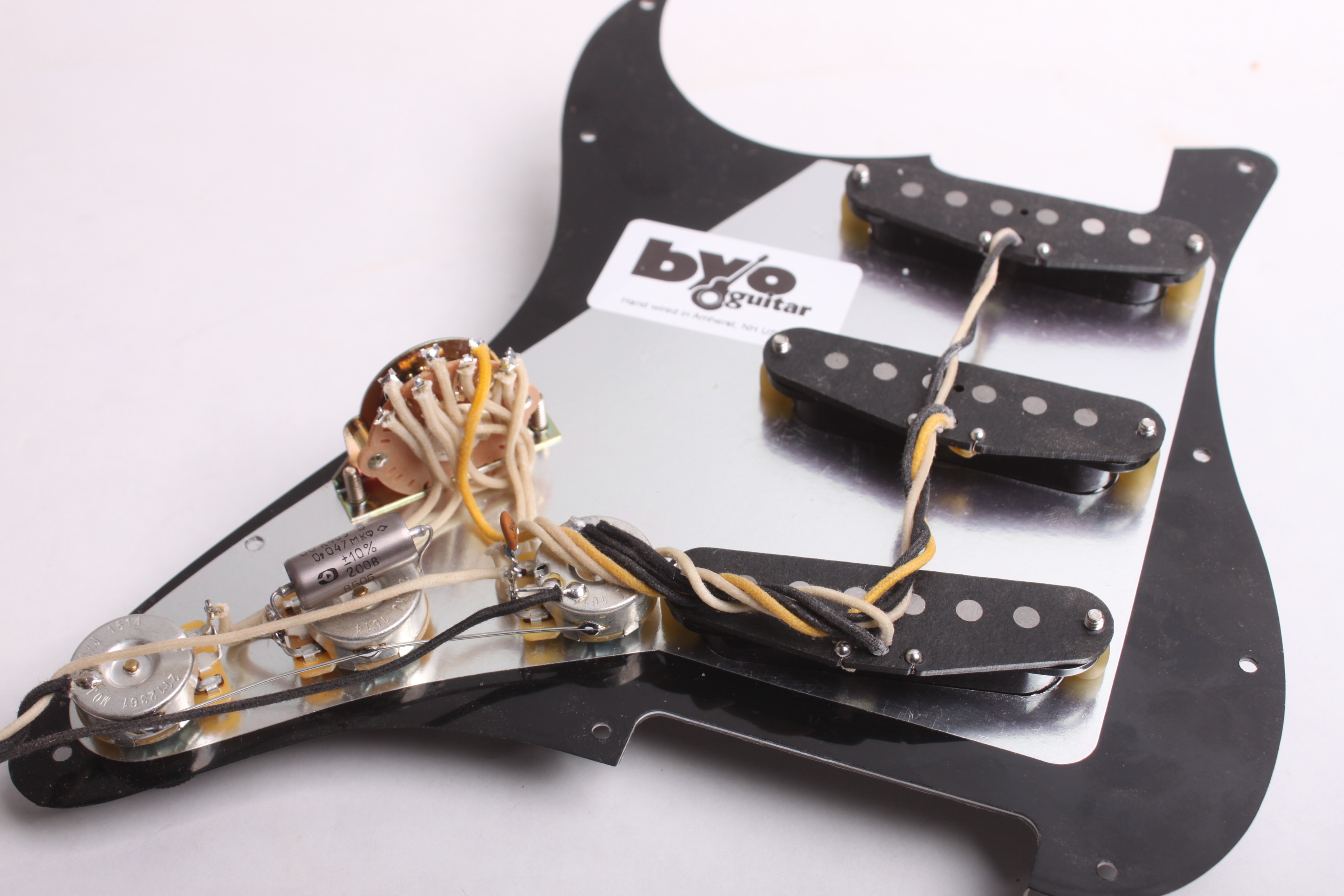

Strat Pre-Wired Pickguard Builder
Start with our Vintage Strat Wiring Harness. Choose your pickups. Then we mount them all on the pickguard of your choice. Wire it all up with vintage cloth wire. Throw on the knobs and switch tip. And you're left with an amazing upgrade for you Strat. Made with the highest quality components, professionally installed.
3 CTS Vintage Taper Audio Pot
250k Split Shaft w/.375" Shaft Potentiometers
7% Tolerance
30% taper (just like vintage potentiometers)
Dished back Lowest torque possible! Tightest tolerance available! Effortless turning!
Solid brass shaft and bushing
Beveled edge split shaft for easy knob push on
Oak Grigsby 5-Way switch
Paper in Oil Capacitor
200V 0.047uF PIO capacitor
10% tolerance
Treble Bleed Circuit
150K-ohm 1/4-watt resistor in parallel with a .001uF capacitor.
Wired between the input and output lugs of the volume pot
Smooths out treble bleed.
Gets more uniform tone from 1 to 10
More rounded sound at low volume.
Vintage 22-Ga pre-tinned cloth wire

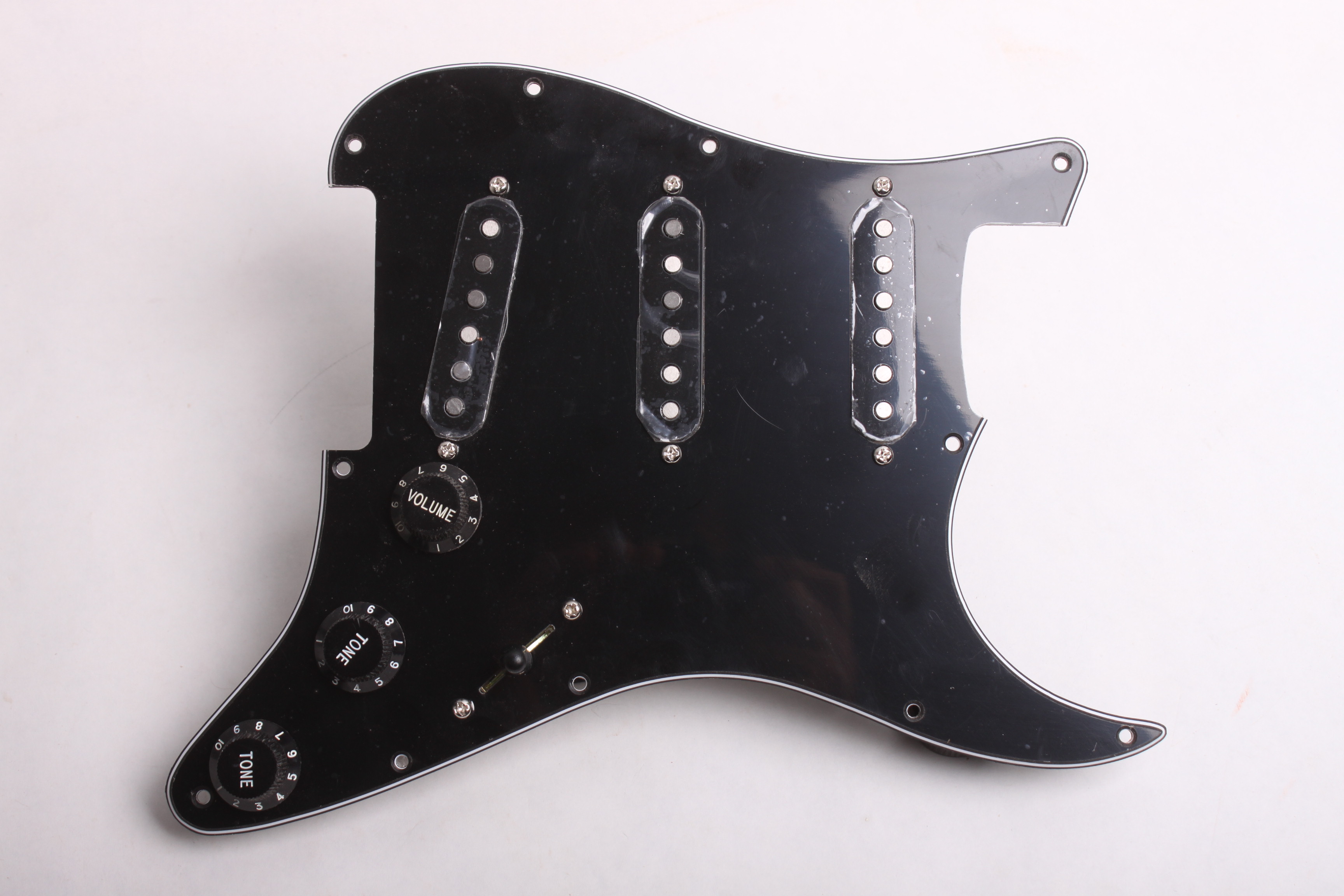

Control Layout:
Master Volume
Tone
Tone
Switch Positions:
Bridge
Bridge & Middle in Parallel
Middle
Middle & Neck in Parallel
Neck
