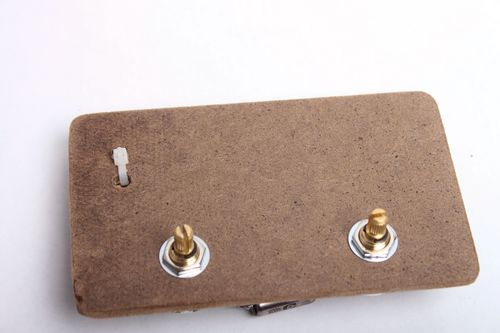

Upgrade your wiring and maximize your tone! This is a pre-wired harness for Gibson Les Paul JR guitars. With 50s style wiring the overall tone gets stronger and more transparent, so the notes seem to “open up”. 50s style wiring also reduces the loss of treble when rolling back the volume.
Our wiring harness are hand wired in our Amherst, NH shop. Using only the highest quality components. Hand selected and vintage correct.
We build BYOGuitar Pre-Wired Electronics using the best craftsmanship and components:
- 2 CTS Vintage Taper Audio Pot
- 500k Split Shaft w/.375" Shaft Potentiometers
- 7% Tolerance
- 30% taper (just like vintage potentiometers)
- Dished back Lowest torque possible! Tightest tolerance available! Effortless turning!
- Solid brass shaft and bushing
- Beveled edge split shaft for easy knob push on
- K40Y-9 NOS Russian PIO Caps
- 200V 0.022uF
- 10% tolerance
- Switchcraft J11 1/4" mono input jack (3/8" length Bushing
- Vintage 22-Ga Braided cloth wire
Luxe Capacitor Upgrades
9 years in development, these are brand new, made in the U.S.A. in the Luxe Radio workshop, to Vintage Specs.
These parts are fresh from the time machine and authentic inside AND out.
Bumble Bee
1956-1960 Luxe Oil-Filled .022mF Bumble Bee Capacitor
Each cap is hand wound on a 1932 Sprague Specialties Co. Winding Machine replica using exact vintage spec foil and paper film. They're hand soldered, hand cast in oven-proof thermoplastic, hot vacuum impregnated with pure castor oil and hand-painted.
Black Beauty
1960-1970 Luxe Paper & Foil .022mF Black Beauty Capacitor
Each cap is hand wound on a 1932 Sprague Specialties Co. Winding Machine replica using exact vintage spec foil and paper film. They're hand soldered, hot vacuum impregnated with pure castor oil and beeswax, hand cast in oven-proof thermoplastic, and hand-marked with an old-school offset marking press. Includes vintage style spaghetti tubing on each lead, as pictured.
Grey Tiger
1952-1956 Grey Tiger: Wax Impregnated .02mF Capacitor
Each Grey Tiger cap is hand wound on our shopbuilt 1932 Sprague Specialties Co. Winding Machine replica using exact vintage spec foil and paper film. They're hand soldered and hot vacuum impregnated with pure castor oil and beeswax. The capacitor slug is fitted into a precise historic reproduction printed paper tube, sealed with epoxy, vacuum potted in beeswax, dipped in a vintage recipe wax coating and lightly aged. Also included is vintage style spaghetti tubing insulation on the leads.
