BYO Custom Shop Shredder Kit

Choose Hand


$409.00
List Price $479.00
You Save $70.00
Availability: Ships in 3 weeks

BYO Custom Shop Shredder Kit
SKU: BYO-CS-SHREDDER-KIT

BYOGuitar Shredder!


A high quality reproduction of a classic. Because we make each one to order they can be customized to your specifications. If you want something you don't see, drop us a note. In most cases we can make it!

SHIPS IN 3 WEEKS


The Body
Double cutaway, bolt on construction. Routed for an original Floyd Rose tremolo. Tummy cut and arm cut. Available in your choice of woods
  • Body Construction Options
    • Solid Body, your choice of wood.
  • Trem Options
    • Licensed Floyd Rose Tremolo.
    • Floyd Rose Special Series.
    • Original Floyd Rose.
  • BYOGuitar Eruption Bridge (Black, A5, 16.8k)


The Neck
The banana headstock, bolt on neck is constructed from the finest quality, quartersawn rock Maple. This creates a straight, stable neck for years to come. It's a 22 fret neck with a R3 locking nut. A double action truss rod allows fine adjustment to achieve the action you are after. Complete each neck with the 25.5" scale length fingerboard.

  • 25.5" Scale length
  • 12" Radius
  • Jumbo Frets
  • Double Action Truss Rod
  • Quarter sawn Rock Maple.
  • Choose fingerboard material
  • Dot inlays
  • Double locking R3 nut
Upgraded wiring includes 500K CTS Pot, Switchcraft jack and vintage cloth wiring.

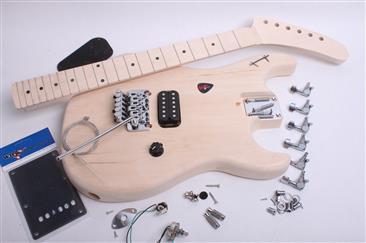

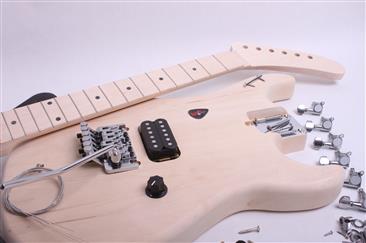

The kit includes all the hardware and electronics required to build a complete, playable guitar.
Complete contents includes the following:
  • Body
  • Neck
  • 6 inline Tuners
  • Pickup
  • Tremolo
  • Strap Pins
  • Rear electronics and trem covers
  • Prewired Electronics
  • 1 500K Volume Pot
  • Barrel Jack
  • String retainer bar
  • Volume knob
  • All required screws and hardware


We charge a 20% return fee on each custom shop item.
  • Ships in 3 weeks
  • Complete instructions included
  • Wood Type:Customer Choice
  • Neck Pocket TypeBolt On
  • Scale Length:25-1/2
  • Frets:22 Jumbo
  • Inlays:Dots
  • Fretboard Radius:12"
  • Fingerboard:Maple
  • Side Markers:Dots
  • Truss Rod:Double action, adjustable at heel
  • Tuner Holes:Modern 13/32" (10.32mm)
