BYO Custom Shop Finished Tele Kit

List Price $599.00
You Save $40.00
Availability: Ships in 30+ Days

BYO Custom Shop Finished Tele Kit

BYOGuitar Custom Shop Kit!

Ships in 30 - 40 days

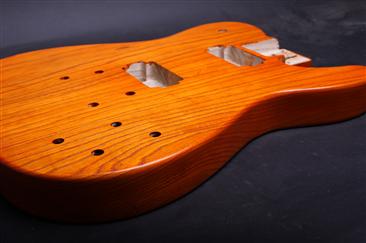

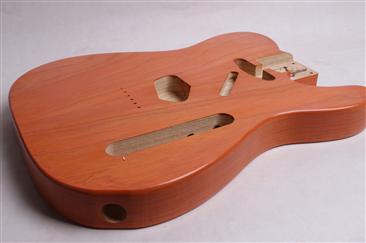

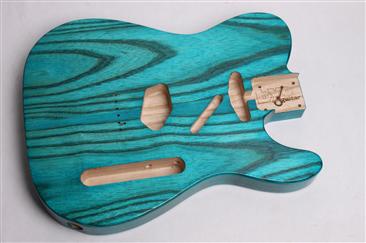

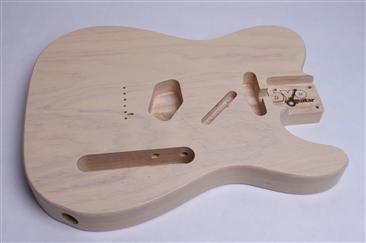

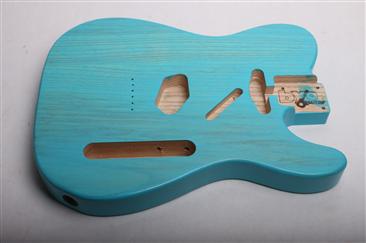

If you are looking for top quality guitar kits, you've come to the right place. We even put a beautiful Wudtone Finish of your choice on the body for you!

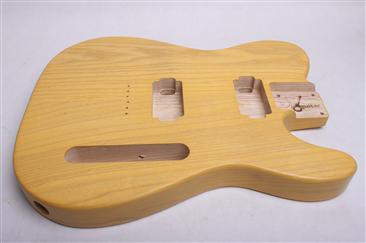

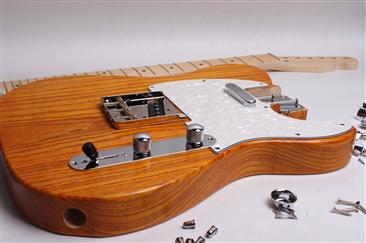

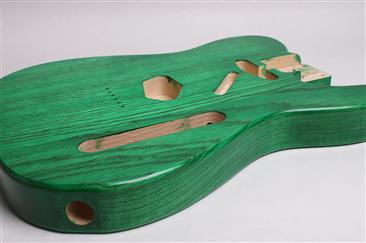

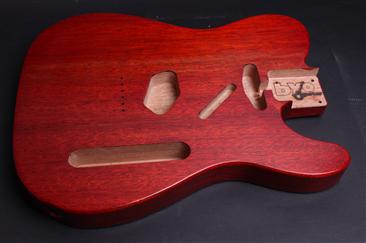

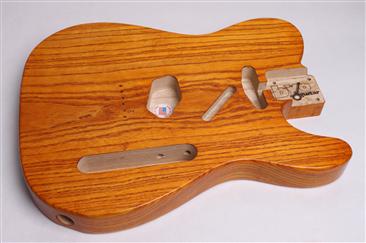

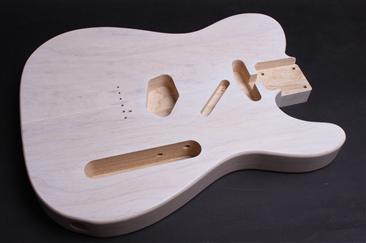

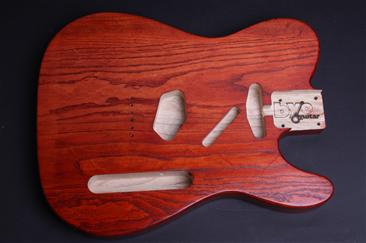

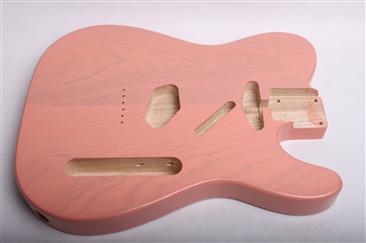

Highest quality body manufactured in the USA by us in our custom shop! We cut these on our CNC router producing precise cavities and a perfect neck pocket. This kit included a beautiful Licensed Fender Maple neck with a Walnut skunk stripe.

Your choice of body wood! Choose from Mahogany, Swamp Ash or Alder. Special features include BYOGuitar pickups, nickel silver frets, 3-saddle compensated string-thru-body bridge, and your choice of a pickguard color.

Twister Tele® pickups are a vintage Tele® pickup set delivering that classic 60's sound. A clean Tele sound with sharp attack and lots of clarity. Alnico 5 magnets and plain enamel wire produce that classic twang and big, clear bottom end. Strong mid range needed for all styles, clean or driven. And a top end that is very clear and glassy.
The neck pickup has a nickel silver cover. The bridge pickup has a vintage correct copper base plate. RWRP when combined for hum canceling. Vintage cloth lead wires. Vacuum wax potted.

Magnets: A5
DCR: 6.8k Neck, 6k Bridge
Wire: 42 Plain Enamel Bridge, 43 Plain Enamel Neck
Vintage cloth lead wires.

If you choose to upgrade your wiring harness, you will receive our super high quality, hand wired BYO-T3 harness.

  • Solid Mahogany, Swamp Ash or Alder body
  • Licensed Fender Maple neck with a Walnut Skunk Stripe
  • BYO Twister Vintage Pickups
  • Compensated bridge
  • Choice of pickguard
  • Available in right or left hand

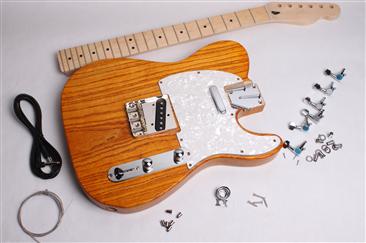

  • All parts and hardware to build a complete playable guitar

Please note that we do not accept returns of Custom Finished items and there is a $50 cancellation fee.


  • Ships in 30+ Days
  • Complete instructions PDF Version Available
  • Wood Type:Swamp Ash
  • Neck Pocket TypeBolt On
  • Scale Length:25-1/2
  • Finish:Clear satin on neck. Customer choice of finish on body.
  • Frets:22 Medium Jumbo
  • Inlays:Dots
  • Fretboard Radius:12"
  • Fingerboard:Maple
  • Side Markers:Dots
  • Truss Rod:Double action, adjustable at peghead
  • Tuner Holes:Modern 13/32" (10.32mm)
