BYO Custom Shop Evolution Kit BYO-CS-EVO
BYO Custom Shop Evolution Kit BYO-CS-EVO
Email To A Friend   |   Print Page

BYO Custom Shop EVOlution Kit

Choose Wood
Body Construction
Top Shape
Top Binding
Choose Trem
Fingerboard
Fingerboard Radius
Fret Size
Inlays
Pickup Options
Upgrade Tuners
Hardware Color (Does not include Tremolo or Tuners)
Upgrade Strings?
Case/bag (Save 10%)
Choose Hand
Pre-Drill for me
$439.00
List Price $499.00
You Save $60.00
Availability: Ships in 4-6 weeks
BYO Custom Shop EVOlution Kit
SKU: BYO-CS-EVO

BYOGuitar EVOlution!

A high quality reproduction of an ax that has evolved over the years. The BYOGuitar EVOlution. Made in the USA in our Custom Shop.

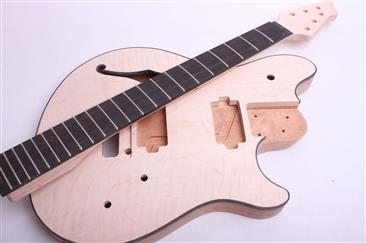

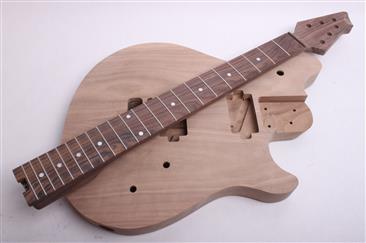

The guitar features a double cut away offset body. Routed for an original Floyd Rose and solid mount pickups. The base kit includes a solid body in the wood or your choice. If you're looking for more eye candy, upgrade to the solid wood drop top. This is a 1/4" solid wood top, not thin veneer. Available in different grades of figured Maple.

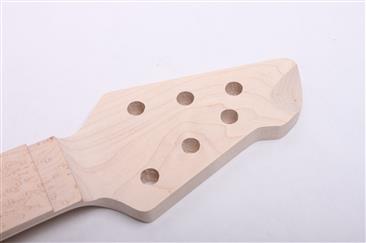

The bolt on neck is constructed of quarter sawn maple with the fingerboard of your choice. 3x3 tuners on an offset headstock. Jumbo frets and a R3 locking nut.

Each one is made to order they can be customized to your specifications. If you want something you don't see, drop us a note. In most cases we can make it!

SHIPS IN 4 WEEKS

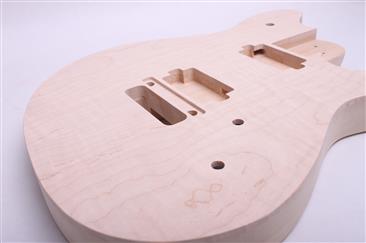

The Body

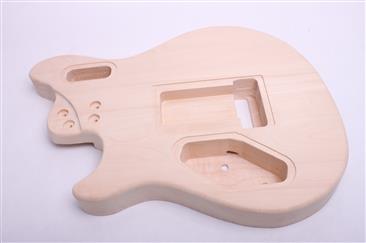

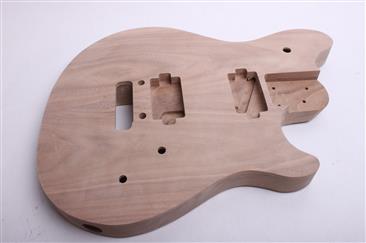

Double cutaway, bolt on construction. Routed for an original Floyd Rose tremolo. Available in your choice of woods
  • Body Construction Options
    • Solid Body, your choice of wood.

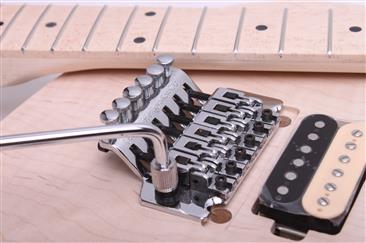

  • Trem Options
    • Licensed Floyd Rose Tremolo.
    • Floyd Rose Special Series.
    • Original Floyd Rose.
  • Standard pickups that come with the kit are BYOGuitar Eruption Pickups in Black! You can select different pickups in the dropdown box, if you would like.


The Neck

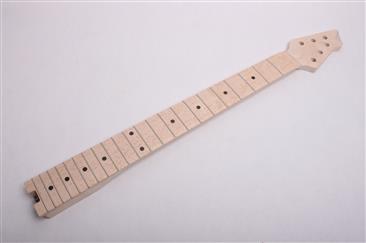

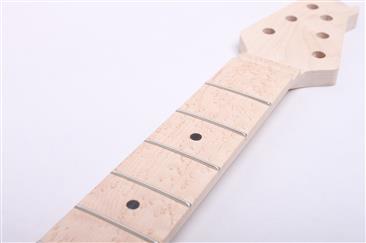

The 3x3 bolt on neck is constructed from the finest quality, quartersawn rock Maple. This creates a straight, stable neck for years to come. It's a 22 fret neck with a R3 locking nut. A double action, spoke, truss rod allows fine adjustment to achieve the action you are after. Complete each neck with the 25.5" scale length fingerboard.

  • 25.5" Scale length
  • 12" Radius
  • Jumbo Frets
  • Double Action Spoke Truss Rod
  • Quarter sawn Rock Maple.
  • Choose fingerboard material
  • Dot inlays
  • Locking R3 nut


The kit includes all the hardware and electronics required to build a complete, playable guitar.
Complete contents includes the following:
  • Body
  • Neck
  • 3x3 Tuners
  • Pickups
  • Tremolo
  • Strap Pins
  • Rear electronics and trem covers
  • Prewired Electronics
  • 1 500K Volume Pot, 1 500K Tone Pot
  • 3 Way Switch
  • Output Jack
  • String retainer bar
  • Volume and Tone knobs
  • All required screws and hardware


We charge a 20% return fee on each custom shop item.
  • Ships in 4-6 weeks
  • Complete instructions included
  • Wood Type:Customer Choice
  • Neck Pocket TypeBolt On
  • Scale Length:25-1/2
  • Frets:22 Jumbo
  • Inlays:Dots
  • Fretboard Radius:12"
  • Fingerboard:Maple
  • Side Markers:Dots

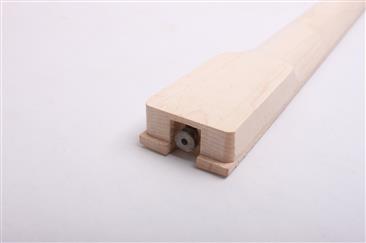

  • Truss Rod:Double action, adjustable at heel
  • Tuner Holes:Modern 13/32" (10.32mm)
