5-Way Strat Pre-wired Harness

List Price $79.00
You Save $15.00
Availability: In Stock

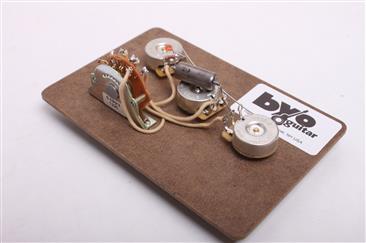

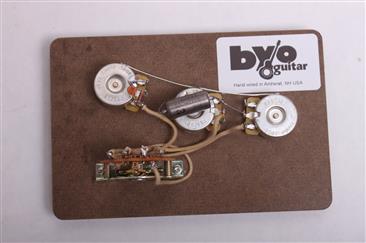

5-Way Strat Pre-wired Harness

Our wiring harness are hand wired in our Amherst, NH shop. Using only the highest quality components. Hand selected and vintage correct.

This Stratocaster 5-way wiring kit will give you better tone, clarity and more control.

We build BYOGuitar Pre-Wired Electronics using the best craftsmanship and components:

  • 3 CTS Vintage Taper Audio Pot
    • 250k Split Shaft w/.375" Shaft Potentiometers
    • 7% Tolerance
    • 30% taper (just like vintage potentiometers)
    • Dished back Lowest torque possible! Tightest tolerance available! Effortless turning!
    • Solid brass shaft and bushing
    • Beveled edge split shaft for easy knob push on
  • Oak Grigsby 5-Way switch
  • Russian K40Y-9 Capacitor
    • 200V 0.047uF PIO capacitor
    • 10% tolerance
  • Treble Bleed Circuit
    • 150K-ohm 1/4-watt resistor in parallel with a .001uF capacitor.
    • Wired between the input and output lugs of the volume pot
    • Smooths out treble bleed.
    • Gets more uniform tone from 1 to 10
    • More rounded sound at low volume.
  • Vintage 22-Ga pre-tinned cloth wire


Control Layout:

  • Master Volume
  • Tone
  • Tone

Switch Positions:

  1. Bridge
  2. Bridge & Middle in Parallel
  3. Middle
  4. Middle & Neck in Parallel
  5. Neck
