TonePros TP6

Choose Color




List Price $64.00
Your Price $44.99
You Save $19.01
In Stock
Qty




TonePros TP6

SKU: TP6

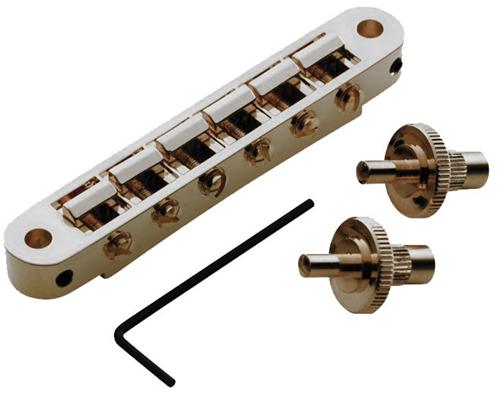

Locking version of the Nashville type standard small post and threaded insert as found standard on current USA Gibson Les Paul GT and Gibson SG GT models. (Same format as LP Standard & LP Custom). Un-notched saddles for professional installation. Can be fit with many standard sized Piezo and & aftermarket graphite or exotic saddle materials. Direct retrofit for most USA guitars without modification.

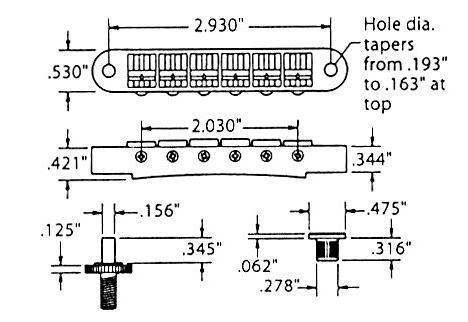

Important dimensions:

TonePros Standard (US Models) Tune-O-Matic Bridge
Thread = 5mm Metric (as used by Gibson on Nashville Models)
Post to Post Spacing = 2.93 inches/ 74.5mm
Saddle Notch = Un-Notched Saddles

Saddle Material = Zmac
Bridge Material: Zmac
Post/Thumbwheel Material = Brass
Radius = 12 inch
Post Top Width = .15 Inches / 4mm
Bridge Stud Diameter = 4 mm Smooth Top
Bridge Center To Center Spacing = 2.95 inches
Saddle Spacing = 10.4 mm

TonePros TP6

  • In Stock
    • TonePros Standard (US Models) Tune-O-Matic Bridge
    • Thread = 5mm Metric (as used by Gibson on Nashville Models)
    • Post to Post Spacing = 2.93 inches/ 74.5mm
    • Saddle Notch = Un-Notched Saddles
    • Saddle Material = Zmac
    • Bridge Material: Zmac
    • Post/Thumbwheel Material = Brass
    • Radius = 12 inch
    • Post Top Width = .15 Inches / 4mm
    • Bridge Stud Diameter = 4 mm Smooth Top
    • Bridge Center To Center Spacing = 2.95 inches
    • Saddle Spacing = 10.4 mm
