Maple Single Cut Set Neck w/Rosewood Fingerboard

List Price $149.00
Your Price $99.00
You Save $50.00
In Stock
Qty




Maple Single Cut Set Neck w/Rosewood Fingerboard

SKU: BYO-SCSN-Maple

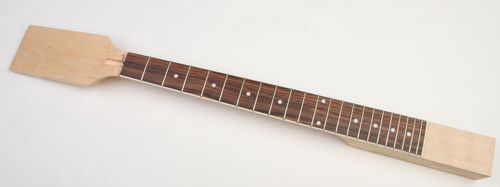

This is a top quality Maple neck with cream binding. It has an uncut heel, ready to be customized for a set neck body. The angled headstock is unshapped.

The heel starts at the 13th fret (like an LP). Making it perfect for a single cut body.
  • Maple with Rosewood fingerboard
  • Cream Binding
  • 22 Frets

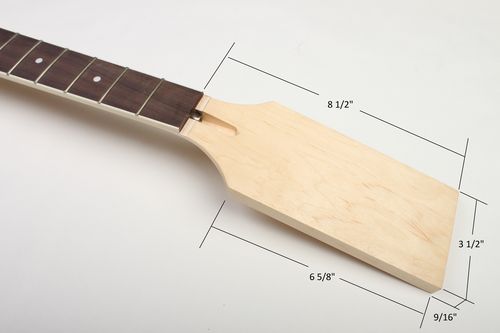

  • Headstock: 8 1/2" from end of fingerboard. 3 1/2" wide.

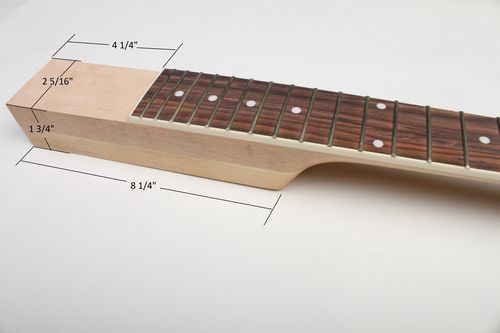

  • Heel: 4 1/4" past the end of fingerboard. 2 5/16" wide at end. 1 3/4" thick.
  • Start of heel to end of neck: 8 1/4"
  • 1 5/8" at nut
  • .82 @ 1st fret
  • .95 @ 12th fret
  • Jumbo Frets (.103 x .046)
  • Adjustable truss rod at headstock
  • One coat of sanding sealer

Click on the Tech Specs for additional details.

Maple Single Cut Set Neck w/Rosewood Fingerboard

  • In Stock
  • Wood Type:Hard Rock Maple
  • Finish:One Coat of Poly
  • Fingerboard:Rosewood
  • Scale Length:24-3/4
  • Fretboard Radius:12"
  • Frets:22 Jumbo
  • Inlays:Dots
  • Side Markers:Dots
  • Tuner Holes:Not Drilled
  • Truss Rod:Adjusting nut at the peghead
  • Nut:Not Installed
  • Neck Style:Set Neck
  • Width at Nut:1-5/8"
  • Thickness at first fret.82
  • Thickness at twelth fret.95
