Electric Guitar Kit - Double Cut Jr

List Price $499.00
Your Price $325.00
You Save $174.00
Ships in 30+ Days
Qty




Electric Guitar Kit - Double Cut Jr

SKU: BYO-DC-JR-African

Perfect kit for the first time builder! Body and Neck made in the USA by BYO.

Upgrade your wiring to a BYOGuitar LP Jr harness to get the most from your electronics!

This high quality kit includes all parts to build a complete, playable guitar. 1 Piece body is made from African Mahogany, here in the USA by BYOGuitar. All shaping and routing is complete and body is bare wood for easier finishing.
The neck is also 1 piece African Mahogany, made by BYO, with an Adjustable truss rod.
All the chrome hardware is heavily nickel plated. We cut the pickguard and backplate here at our shop, so the fit is great. We also make the wiring harness here, so you know it is right and you will have no wiring headaches building this guitar. You just have to wire the Dog Ear P90 pickup.

Check out our Wudtone Finishing products for a beautiful, easy finish. TV Girl and Cherry Flamenco look fantastic on the Mahogany.

You won't find another kit like this one!

Kit includes all parts to build a complete, playable guitar (see additional images).

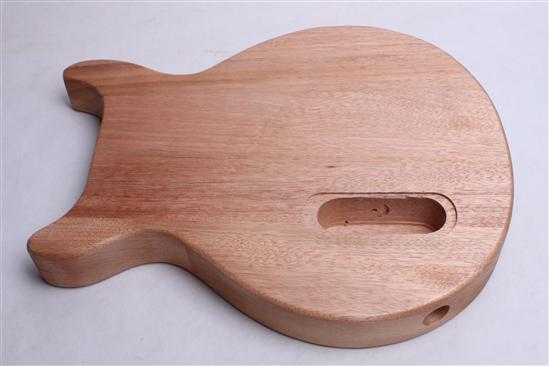

  • 1 Piece African Mahogany Body, made by BYO

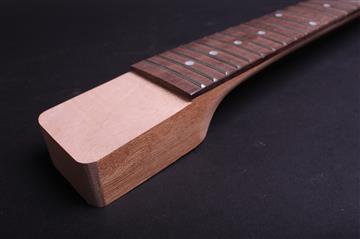

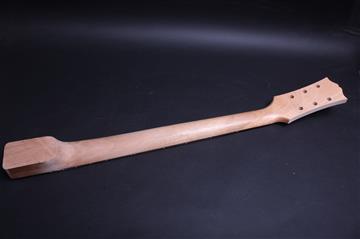

  • 1 Piece African Mahogany Neck, made by BYO

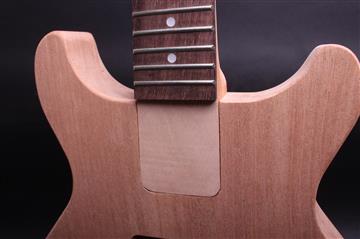

  • Set Neck Construction
  • 22 Frets
  • Chrome hardware
  • Vintage P90 dog ear pickup.
  • Wraparound Bridge
  • One Volume and one tone, wiring harness made by BYO
  • Adjustable truss rod
  • Complete with strings and electric cord
  • Available in right handed only
  • Body and neck are bare wood

Click on the Tech Specs for additional details.



Electric Guitar Kit - Double Cut Jr

  • Ships in 30+ Days
  • Complete instructions PDF Version Available
  • Wood Type:African Mahogany
  • Neck Pocket TypeSet Neck
  • Scale Length:24-3/4
  • Pickups:Single P90
  • Finish:Bare wood
  • Frets:22 Medium Jumbo
  • Inlays:Dots
  • Fretboard Radius:12"
  • Fingerboard:Rosewood
  • Side Markers:Dots
  • Truss Rod:Adjusting nut at the peghead
  • Tuner Holes:Modern 13/32" (10.32mm)

Electric Guitar Kit - Double Cut Jr


Additional Product Accessories

This is a pre-wired harness for Gibson Les Paul JR guitars. With 50s style wiring the overall tone gets stronger and more transparent, so the notes seem to “open up”. 50s style wiring also reduces the loss of treble when rolling back the volume.
$39.00



Titebond 50 is a ready to use aliphatic resin emulsion adhesive. For over 55 years, it has been the premier choice for bonding wood substrates. It is fast setting and has excellent heat resistance. Titebond 50 can be used in edge and face gluing
$5.49

We set out to design a dog ear pickup that would deliver a vintage P90 sound. The Hurricane delivers. When used clean it delivers fat midrange. Yet responsive to overdrive for that classic P90 growl. Constructed using 2 alnico II bar magnets
$44.99
